Description
Highlights
• Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors
• Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Next-gen connectivity: PCIe® 4.0, Intel® 1 Gb Ethernet , USB 3.2 Gen 2×2 Type-C®, Thunderbolt™ 4 header support
• Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Next-gen connectivity: PCIe® 4.0, Intel® 1 Gb Ethernet , USB 3.2 Gen 2×2 Type-C®, Thunderbolt™ 4 header support
Features
    Specifications • Stock Code:PRIMEZ590M-PLUS

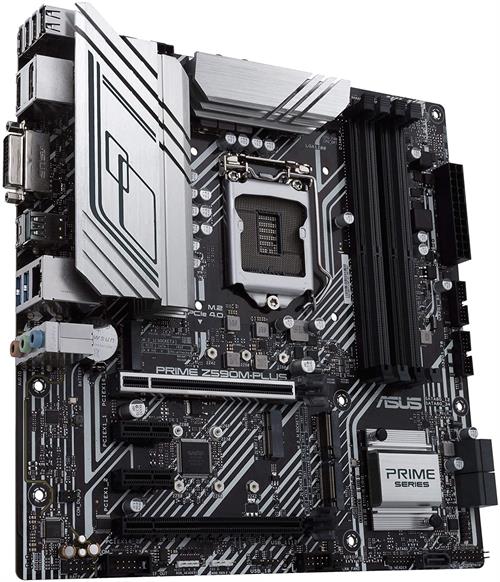

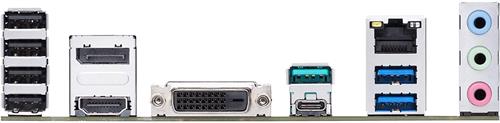

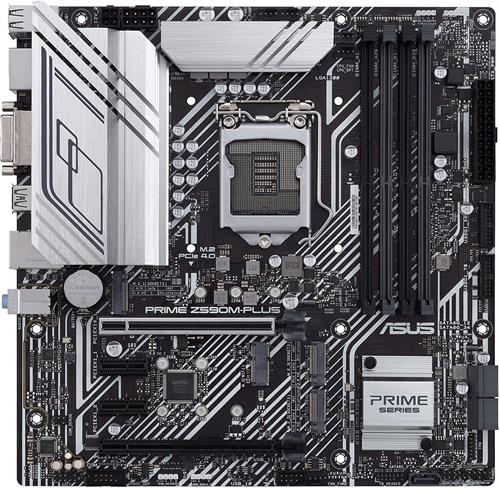

• Description:Asus PRIME Z590M-PLUS LGA 1200 Motherboard • supports 11th Generation Intel Core • Pentium Gold and Celeron Processors • Intel Z590 Chipset • 4 x Dual Channel DDR4 DIMM Memory Slots • 5 x SATA6 Connectors • 3 x M.2 Key M Connector • On-board Display 1x DisplayPort Connector • 1x HDMI • 1 x DVI-D port • On-Board Realtek ALC897 7.1 Channel High Definition Audio CODEC • 1 x PCIe 4.0/3.0 x16 slot • 1 x PCIe 3.0 x16 slot (supports x4 mode) • 2 x PCIe 3.0 x1 slots • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) • 1 x USB 3.2 Gen 2 port (1 x Type-A) • 2 x USB 3.2 Gen 1 ports (2 x Type-A) • 4 x USB 2.0 ports (4 x Type-A) • mATX Form Factor • Retail Box •1 year warranty |
