Description
Features

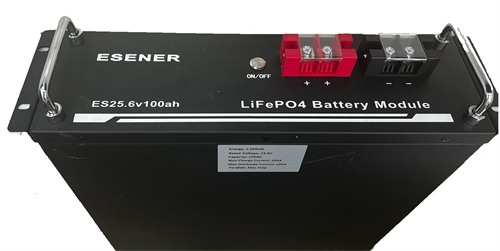

• Esener 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
• Excellent High-Temperature Performance.
• 1c High-Performance Lithium Battery.
• High Energy Density And Conversion Efficiency.
• Low Self-Discharge.
• 19 Inch Rack Mount Chassis
• Heavy-Duty Side Handles For Easy Handling And Mounting To The Wall
• Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
• Long Lifespan Up To 10 Years
• Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD
• Normal Voltage 25.6V
• Rated Capacity: 100Ah
• Total Usable Energy 2.56KWh
• Voltage Range 20.0V to 29.2V
• Charge Current 100A
• Discharge Current 100A
Specifications
• Stock Code SOLES25LB100A
• Description Solarix Esener 2.56 kWh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Rated Capacity (5HR): 100Ah.
• Voltage: 25.6V.
• Total Usable Energy 2.56KWh
• Discharge Cut-off Voltage: 20.0V.
• Equalised Charge Voltage: 29.2V.
• Maximum Continuous Charging Current: 100A.
• Maximum Continuous Discharging Current: 100A.
• C. Rating: 1.0C.
• Display: None.
• Parallel/Series: Parallel and series connection up to “2S2P”.
• Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch.
• Cells: New Li-Ion Prismatic Cells.
• Design Life: -/+ 10 Years.
• Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD.
• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
• Dimensions (WxDxH): 484mm x 420mm x 133mm.
• Weight: Approx. 26kg.
