Description
Highlights

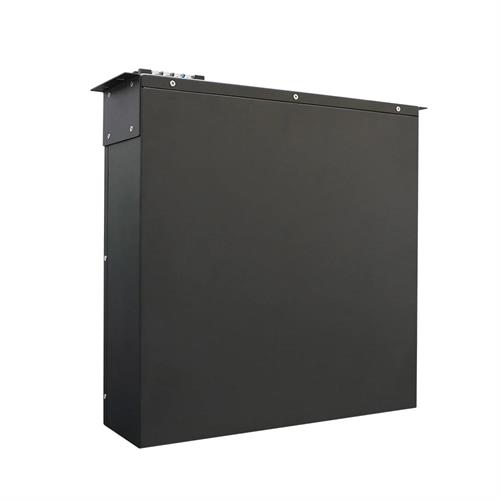

∙ Solarix SunPays 48V 100Ah Lithium Iron Phosphate (Lifepo4) Single Battery Module
∙ Intelligent Battery Management System with RS485 and CAN Bus BMS communication
∙ Design To Work Perfectly Hybrid Invertors Up To 7KVA 48V
∙ Battery Cycle Life ≥ 3500 @ 80% DOD, 25°C 1C (100A)
∙ Normal Voltage 48V
∙ Typical Rated Capacity: 105Ah
∙ Total Usable Energy 4.8KWh
∙ Maximum Continuous Charge Current 100A (controlled by BMS if comm. used)
∙ Maximum Continuous Discharge Current 100A
∙ Easy To Install 19 Inch Rack Mount Chassis
∙ Can also be connected in Parallel with up to 15 battery packs to a total of 72kWh
BMS communication compatible with Following Inverters
Sacolar Inverters , Growatt Inverters, SunPays 5.5kW Inverters, SunPays 4kW / 5kW Inverters (Via TSP Solar Bot)
Sunsynk Inverters, Deye Inverters, Victron Inverters, SMA Inverters, Solis Inverters, Goodwe Inverters, Luxpower Inverters
|
Specifications
∙ Stock Code BALI48TSB14
∙ Description Solarix SunPays 48V 100Ah LiFePo4 Single Battery Module
∙ Battery Type Lithium Iron Phosphate (LifePO4) Chemical Composition
∙ Combination method 15S
∙ 19 Inch Rack Mount Modular Design
∙ Total Usable Energy 4.8KWh
∙ Typical Rated Capacity: 105Ah
∙ Battery Cycle Life ≥ 3500 @ 80% DOD, 25°C 1C (100A)
∙ Charging Voltage 51.6 V
∙ Voltage At End Of Discharge 47 V
∙ Maximum Continuous Charge Current 100A (Controlled By BMS If Comm. Used)
∙ Built In Protection For Over-Charge, Over-Discharge & Over-Temperature.
∙ The Charging Current Is Limited By The BMS Between 20 A To 40A To Ensure Optimal Battery Life
∙ Dimensions 480 x 222 x 442 mm
∙ Weight 45kg (prismatic cells)
∙ Colour Black
What’s in the box:
∙ Solarix SunPays 48V 100Ah LiFePo4 Single Battery Module
∙ Two brackets
∙ Bolts and nuts to mount the battery in a battery cabinet
∙ Communication cable for RS232 (RJ11 to USB)
∙ No network cable is supplied for parallel connectivity
|
